Rigging Screws

Hook and Eye Straining Screws

Made from 316 stainless steel

Part No.	Description	Thread mm	Eye Dia mm	Hook Width mm	Closed Length mm	Our Price £
10105	M5 Hook and Eye Straining Screw	M5	8	8	120	£2.60 Each
10106	M6 Hook and Eye Straining Screw	M6	10	9	150	£3.75 Each
10108	M8 Hook and Eye Straining Screw	M8	14	11	200	£5.90 Each
10110	M10 Hook and Eye Straining Screw	M10	9	12	220	£10.00 Each
10112	M12 Hook and Eye Straining Screw	M12	18	14	310	£17.20 Each
10116	M16 Hook and Eye Straining Screw	M16	26	16	390	£40.50 Each
10120	M20 Hook and Eye Straining Screw	M20	30	18	440	£62.85 Each

Eye and Eye Straining Screws

Made from 316 stainless steel

Part No.	Description	Thread mm	Eye Dia mm	Closed Length mm	Our Price £
10205	M5 Eye and Eye Straining Screw	M5	8	120	£2.42 Each
10206	M6 Eye and Eye Straining Screw	M6	10	150	£2.46 Each
10208	M8 Eye and Eye Straining Screw	M8	14	200	£5.90 Each
10210	M10 Eye and Eye Straining Screw	M10	16	240	£10.00 Each
10212	M12 Eye and Eye Straining Screw	M12	18	310	£17.20 Each
10216	M16 Eye and Eye Straining Screw	M16	26	390	£27.00 Each
10220	M20 Eye and Eye Straining Screw	M20	30	440	£62.85 Each

Budget Eye And Stud Rigging Screws

Made from type 316 stainless steel.

Part no.	Description	Thread	Wire mm	Eye Dia mm	Eye Width mm	Min Length mm	Max Length mm	Price
11300255	M5 Budget Eye And Stud Rigging Screw	M5	2.5	-	-	-	-	£7.98 Each
11300306	M6 Budget Eye And Stud Rigging Screw	M6	3	7	4	117	192	£8.00 Each
11300408	M8 Budget Eye And Stud Rigging Screw	M8	4	9	6	145	230	£11.75 Each
11300510	M10 Budget Eye And Stud Rigging Screw	M10	5	-	-	-	-	£16.92 Each
11300612	M12 Budget Eye And Stud Rigging Screw	M12	6	-	-	-	-	£37.00 Each
11300714	M14 Budget Eye And Stud Rigging Screw	M14	7	-	-	-	-	£42.00 Each

Budget Stud And Stud Rigging Screws

Made from type 316 stainless steel.

Part no.	Description	Thread	Wire mm	Min Length mm	Max Length mm	Price
11400306	M6 Budget Stud And Stud Rigging Screw	M6	3	-	-	£8.40 Each
11400408	M8 Budget Stud And Stud Rigging Screw	M8	4	105	305	£11.45 Each
11400510	M10 Budget Stud And Stud Rigging Screw	M10	5	125	360	£14.00 Each
11400612	M12 Budget Stud And Stud Rigging Screw	M12	6	150	435	£21.00 Each
11400714	M14 Budget Stud And Stud Rigging Screw	M14	7	165	480	£21.95 Each
11400816	M16 Budget Stud And Stud Rigging Screw	M16	8	190	550	£57.35 Each

Budget Toggle And Toggle Rigging Screws

Made from type 316 stainless steel.

Part no.	Description	Price
11500306	M6 Budget Toggle And Toggle Rigging Screw (3mm Wire)	£10.00 Each
11500408	M8 Budget Toggle And Toggle Rigging Screw (4mm Wire)	£15.00 Each
11500510	M10 Budget Toggle And Toggle Rigging Screw (5mm Wire)	£17.75 Each
11500612	M12 Budget Toggle And Toggle Rigging Screw (6mm Wire)	£24.40 Each

Eye and Blank Rigging Screws

Forged in England from 316 stainless steel, manufactured with UNF threads.

Part.	Description	Thread UNF	Wire mm	Pin mm	Eye Width mm	Min Length mm	Max Length mm	Price
RSEB03	1/4" Eye and Blank Rigging Screw	1/4"	3	6.3	6	100	135	£13.32 Each
RSEB04	5/16" Eye and Blank Rigging Screw	5/16"	4	8	7	120	160	£16.50 Each
RSEB05	3/8" Eye and Blank Rigging Screw	3/8"	5	9.5	8	150	200	£21.78 Each
RSEB06	7/16" Eye and Blank Rigging Screw	7/16"	6	11.1	9.5	165	220	£27.78 Each
RSEB07	1/2" Eye and Blank Rigging Screw	1/2"	8	12.7	11	200	265	£38.16 Each
RSEB08	5/8" Eye and Blank Rigging Screw	5/8"	8	14.3	14	255	330	£77.88 Each
RSEB10	5/8" Eye and Blank Rigging Screw	5/8"	10	16	15	260	335	£77.88 Each
RSEB12	3/4" Eye and Blank Rigging Screw	3/4"	12	19	18	295	380	£146.16 Each
RSEB14	7/8" Eye and Blank Rigging Screw	7/8"	14	22.2	22	330	430	£207.06 Each
RSEB16	1" Eye and Blank Rigging Screw	1"	16	25.4	24	390	510	£375.36 Each
RSEB19	1 1/8" Eye and Blank Rigging Screw	1 1/8"	19	28.6	28	445	580	£665.64 Each
RSEB22	1 1/4" Eye and Blank Rigging Screw	1 1/4"	22	32	32	480	620	£912.66 Each
RSEB26	1 3/8" Eye and Blank Rigging Screw	1 3/8"	26	35	34	545	710	£1,189.80 Each

Stud and Eye Rigging Screws

Forged in England from 316 stainless steel, manufactured with UNF threads.

Part.	Description	Thread UNF	Wire mm	Pin mm	Eye Width mm	Min Length mm	Max Length mm	Price
RSSE03	1/4" Stud and Eye Rigging Screw	1/4"	3	6.3	6	115	185	£30.00 Each
RSSE04	5/16" Stud and Eye Rigging Screw	5/16"	4	8	7	140	215	£37.20 Each
RSSE05	3/8" Stud and Eye Rigging Screw	3/8"	5	9.5	8	170	270	£48.00 Each
RSSE06	7/16" Stud and Eye Rigging Screws	7/16"	6	11.1	9.5	193	295	£63.60 Each
RSSE06DS	3/8" Stud and Eye Rigging Screw	3/8"	6	9.5	7.8	173	273	£52.80 Each
RSSE07	1/2" Stud and Eye Rigging Screw	1/2"	8	12.7	11	225	355	£90.00 Each
RSSE07DS	7/16" Stud and Eye Rigging Screw	7/16"	7	11.1	9.5	194	299	£94.80 Each
RSSE08DS	1/2" Stud and Eye Rigging Screw	1/2"	8	12.7	11	225	350	£94.80 Each
RSSE08US	5/8" Stud and Eye Rigging Screw	5/8"	8	16.0	15.0	290	445	£159.60 Each
RSSE10	5/8" Stud and Eye Rigging Screw	5/8"	10	16	15	290	445	£166.80 Each
RSSE12	3/4" Stud and Eye Rigging Screws	3/4"	12	19	18	335	505	£285.60 Each
RSSE14	7/8" Stud and Eye Rigging Screw	7/8"	14	22.2	22	375	570	£436.80 Each
RSSE16	1" Stud and Eye Rigging Screws	1"	16	25.4	24	440	680	£693.60 Each
RSSE19	1 1/18" Stud and Eye Rigging Screw	1 1/18"	19	28.6	28	495	765	£1,206.00 Each
RSSE22	1 1/4" Stud and Eye Rigging Screws	1 1/4"	22	32	32	535	820	£1,688.40 Each
RSSE26	1 3/8" Stud and Eye Rigging Screws	1 3/8"	26	35	34	615	940	£2,112.00 Each

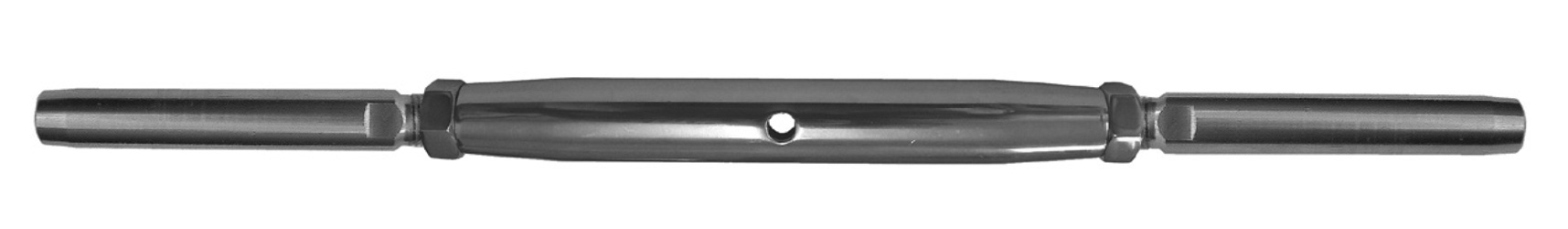

Stud and Stud Rigging Screws

Forged in England from 316 stainless steel, manufactured with UNF threads.

Part.	Description	Thread UNF	Wire mm	Min Length mm	Max Length mm	Price
RSSS03	1/4" Stud and Stud Rigging Screw	1/4"	3	115	180	£18.00 Each
RSSS04	5/16" Stud and Stud Rigging Screw	5/16"	4	135	215	£22.50 Each
RSSS05	3/8" Stud and Stud Rigging Screw	3/8"	5	165	265	£30.06 Each
RSSS06	7/16" Stud and Stud Rigging Screw	7/16"	6	180	290	£41.04 Each
RSSS07	1/2" Stud and Stud Rigging Screw	1/2"	7	215	345	£61.32 Each
RSSS08	5/8" Stud and Stud Rigging Screw	5/8"	8	275	430	£110.40 Each
RSSS08DS	1/2" Stud and Stud Rigging Screw	1/2"	8	220	350	£67.08 Each
RSSS10	5/8" Stud and Stud Rigging Screw	5/8"	10	280	435	£109.20 Each
RSSS12	3/4" Stud and Stud Rigging Screw	3/4"	12	325	495	£202.14 Each
RSSS14	7/8" Stud and Stud Rigging Screw	7/8"	14	365	560	£283.32 Each
RSSS16	1" Stud and Stud Rigging Screw	1"	16	425	665	£450.84 Each
RSSS19	1 1/8" Stud and Stud Rigging Screw	1 1/8"	19	475	745	£728.88 Each
RSSS22	1 1/4" Stud and Stud Rigging Screw	1 1/4"	22	515	800	£983.28 Each
RSSS26	1 3/8" Stud and Stud Rigging Screw	1 3/8"	26	595	920	£1,363.08 Each

Toggle and Blank Rigging Screws

Forged in England from 316 stainless steel, manufactured with UNF threads.

Part.	Description	Thread UNF	Wire mm	Pin mm	Jaw Width mm	Min Length mm	Max Length mm	Price
RSTB03	1/4" Toggle and Blank Rigging Screw	1/4"	3	6	8	130	160	£17.70 Each
RSTB04	5/16" Toggle and Blank Rigging Screw	5/16"	4	8	10	150	190	£22.62 Each
RSTB05	3/8" Toggle and Blank Rigging Screw	3/8"	5	9.5	11	180	230	£29.58 Each
RSTB06	7/16" Toggle and Blank Rigging Screw	7/16"	6	11	14	200	255	£39.42 Each
RSTB07	1/2" Toggle and Blank Rigging Screw	1/2"	7	12	16	230	300	£53.64 Each

Stud And Fork Rigging Screw

Made in Stainless Steel.

Part No.	Description	Price £	More Details
120610A	3/8" UNF Rigging Screw F/Stud CB SS (6mm Wire)	£27.10 Each

Hook and Eye Straining Screws

Made from 316 stainless steel

Part No.	Description	Thread mm	Eye Dia mm	Hook Width mm	Closed Length mm	Our Price £
10105	M5 Hook and Eye Straining Screw	M5	8	8	120	£2.60 Each
10106	M6 Hook and Eye Straining Screw	M6	10	9	150	£3.75 Each
10108	M8 Hook and Eye Straining Screw	M8	14	11	200	£5.90 Each
10110	M10 Hook and Eye Straining Screw	M10	9	12	220	£10.00 Each
10112	M12 Hook and Eye Straining Screw	M12	18	14	310	£17.20 Each
10116	M16 Hook and Eye Straining Screw	M16	26	16	390	£40.50 Each
10120	M20 Hook and Eye Straining Screw	M20	30	18	440	£62.85 Each
