| Thread/UNF | Wire Dia/mm | Length/mm | Pin Dia/mm | Fork Width/mm | Toggle H2 | Breaking Load/Kn | SWL/Kn |
|---|---|---|---|---|---|---|---|
| 3/8 | 6 | 262/340 | 9.5 | 10 | 22 | 34 | 23.8 |

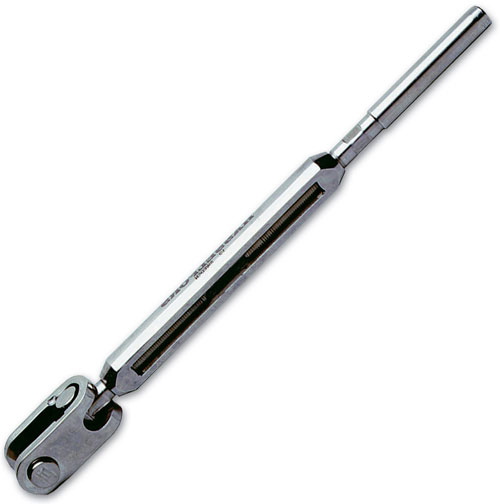

Hasslefors rigging screws are made from high-grade, marine stainless steel - SS2343 (AISI 316L. Carbon content max 0.03% molybdenum content 2.5-3.0%). The rigging screws have cold rolled threads and are polished for higher corrosion resistance. The rigging screw threads are lubricated with Hasselfors rigging screw oil prior to delivery. To keep your rigging screws in good condition, please lubricate them regularly with our special rigging screw oil.dition to our range. Aluminium bronze, like stainless steel, is very strong and highly resistant to corrosion. By making the body of the rigging screw in chrome plated aluminium bronze and the terminals in high grade marine stainless steel, we have reduced the risk of the thread seizing up under heavy loads. A design feature which gives you a product that lasts even longer.
