Compression Fittings

Sta-Lok Eye

In 316 stainless steel. Available in either 1x19 or 7 Strand Wire.

Part No.	Description	Wire mm	A mm	C mm	D mm	Eye mm	Price
6103	Sta-lok Eye Terminal For 1x19 Wire	3	17.9	6.3	5	6.5	£28.56 Each
6103-7	Sta-lok Eye Terminal For 7 Strand Wire	3	17.9	6.3	5	6.5	£24.96 Each
6104	Sta-lok Eye Terminal for 1x19 Wire	4	20.3	8	5.8	8	£31.80 Each
6104-7	Sta-lok Eye Terminal For 7 Strand Wire	4	20.3	8	5.8	8	£38.16 Each
6105	Sta-lok Eye Terminal for 1x19 Wire	5	25.9	10.5	7.5	10	£36.60 Each
6105-7	Sta-lok Eye Terminal For 7 Strand Wire	5	25.9	10.5	7.5	10	£31.86 Each
6106	Sta-lok Eye Terminal for 1x19 Wire	6	31	12.7	9.4	13	£47.70 Each
6106-7	Sta-lok Eye Terminal For 7 Strand Wire	6	31	12.7	9.4	13	£41.40 Each
6107	Sta-lok Eye Terminal for 1x19 Wire	7	32.5	13.6	10.4	13	£54.00 Each
6107-7	Sta-Lok Eye Terminal For 7 Strand Wire	7	32.5	13.6	10.4	13	£46.50 Each
6108	Sta-lok Eye Terminal for 1x19 Wire	8	35.7	14.4	12	13	£65.94 Each
6108-7	Sta-lok Eye Terminal For 7 Strand Wire	8	35.7	14.4	12	13	£57.66 Each
6109	Sta-lok Eye Terminal for 1x19 Wire	8	35.7	15.9	13.4	16	£87.54 Each
6109-7	Sta-lok Eye Terminal For 7 Strand Wire	8	35.7	15.9	13.4	16	£81.54 Each
6110	Sta-lok Eye Terminal for 1x19 Wire	10	41.1	17.8	13.4	16	£99.48 Each
6110-7	Sta-lok Eye Terminal For 7 Strand Wire	10	41.1	17.8	13.4	16	£87.00 Each
6112	Sta-lok Eye Terminal for 1x19 Wire	12	42.9	22.5	19	19.5	£229.08 Each
6112-7	Sta-lok Eye Terminal For 7 Strand Wire	12	42.9	22.5	19	19.5	£201.12 Each
6114	Sta-lok Eye Terminal for 1x19 Wire	14	55.6	25.5	20	22.5	£287.94 Each
6114-7	Sta-lok Eye Terminal For 7 Strand Wire	14	55.6	25.5	20	22.5	£252.96 Each
6116	Sta-lok Eye Terminal for 1x19 Wire	16	63.8	33.3	20	22.5	£345.24 Each
6116-7	Sta-lok Eye Terminal For 7 Strand Wire	16	63.8	33.3	20	22.5	£303.18 Each
6119	Sta-lok Eye Terminal for 1x19 Wire	19	69.3	36.5	27	28.6	£708.12 Each
6119-7	Sta-lok Eye Terminal For 7 Strand Wire	19	68.3	36.5	27	28.6	£621.72 Each
6122	Sta-lok Eye Terminal for 1x19 Wire	22	122.2	39.7	33.3	34.9	£844.02 Each
6122-7	Sta-lok Eye Terminal For 7 Strand Wire	22	122.2	39.7	33.3	34.9	£741.60 Each
6125	Sta-lok Eye Terminal for 1x19 Wire	26	128.6	42.9	33.3	34.9	£1,110.48 Each
6125-7	Sta-lok Eye Terminal For 7 Strand Wire	26	128.6	42.9	33.3	34.9	£975.36 Each

Sta-Lok Fork

In 316 stainless steel. Available in 1x19 amd 7 Strand Wire

Part No.	Description	Wire mm	A mm	B mm	D mm	Pin mm	Price
6303	Sta-Lok Fork Terminal for 1x19 Wire	3	15.5	10	5	5	£34.26 Each
6303-7	Sta-Lok Fork Terminal for 7 Strand Wire	3	15.5	10	5	5	£29.88 Each
6304	Sta-Lok Fork Terminal for 1x19 Wire	4	21.1	14.7	6	6.4	£39.96 Each
6304-7	Sta-Lok Fork Terminal for 7 Strand Wire	4	21.1	14.7	6	6.4	£34.80 Each
6305	Sta-Lok Fork Terminal for 1x19 Wire	5	24.4	18	8	8	£45.42 Each
6305-7	Sta-Lok Fork Terminal for 7 Strand Wire	5	24.4	18	8	8	£39.24 Each
6306	Sta-Lok Fork Terminal for 1x19 Wire	6	30.2	22.2	9.7	10.9	£62.10 Each
6306-7	Sta-Lok Fork Terminal for 7 Strand Wire	6	30.2	22.2	9.7	10.9	£53.82 Each
6307	Sta-Lok Fork Terminal for 1x19 Wire	7	33.9	25.1	10.7	10.9	£81.84 Each
6307-7	Sta-Lok Fork Terminal for 7 Strand Wire	7	33.9	25.1	10.7	10.9	£71.88 Each
6308	Sta-Lok Fork Terminal for 1x19 Wire	8	37	27.4	13.7	13	£97.92 Each
6308-7	Sta-Lok Fork Terminal for 7 Strand Wire	8	37	27.4	13.7	13	£85.86 Each
6310	Sta-Lok Fork Terminal for 1x19 Wire	10	37.9	29.4	13.7	15.6	£122.82 Each
6310-7	Sta-Lok Fork Terminal for 7 Strand Wire	10	37.9	29.4	13.7	15.6	£107.04 Each
6312	Sta-Lok Fork Terminal for 1x19 Wire	12	46	33.3	19.4	18.5	£303.24 Each
6312-7	Sta-Lok Fork Terminal for 7 Strand Wire	12	46	33.3	19.4	18.5	£266.22 Each
6314	Sta-Lok Fork Terminal for 1x19 Wire	14	54	38.1	20.4	21.5	£377.04 Each
6314-7	Sta-Lok Fork Terminal for 7 strand Wire	14	54	38.1	20.4	21.5	£330.90 Each
6316	Sta-Lok Fork Terminal for 1x19 Wire	16	57.5	40	20.4	21.5	£482.10 Each
6316-7	Sta-Lok Fork Terminal for 7 Strand Wire	16	57.5	40	20.4	21.5	£423.54 Each
6319	Sta-Lok Fork Terminal for 1x19 Wire	19	73.8	50	27.8	27	£912.48 Each
6319-7	Sta-Lok Fork Terminal for 7 Strand Wire	19	73.8	50	27.8	27	£801.36 Each
6322	Sta-Lok Fork Terminal for 1x19 Wire	22	152.4	60.3	34.9	33	£1,078.74 Each
6322-7	Sta-Lok Fork Terminal for 1x19 Wire	22	152.4	60.3	34.9	33	£817.26 Each
6325	Sta-Lok Fork Terminal for 1x19 Wire	25	152.4	60.3	34.9	33	£1,292.04 Each
6325-7	Sta-Lok Fork Terminal for 7 Strand Wire	25	152.4	60.3	34.9	33	£1,134.90 Each

Insulated standing rigging provides the ideal antenna for radio transmission and reception. STA-LOK INSULATORS have proven themselves over the years to be an effective and totally reliable method of converting yacht backstays into radio antenna. Please select 1 x 19 or 7 strand wire.

Part No.	Description	Dia mm	Price £
6806	Sta-lok Rigging Insulator for 1x19 Wire	6	£200.82 Each
6806-7	Sta-Lok Rigging Insulator for 7 Strand Wire	6	£170.28 Each
6807	Sta-lok Rigging Insulator for 1x19 Wire	7	£232.74 Each
6808	Sta-Lok Rigging Insulator for 1x19 Wire	8	£242.64 Each
6808-7	Sta-Lok Rigging Insulator for 7 Strand Wire	8	£205.92 Each
6810	Sta-Lok Rigging Insulator for 1x19 Wire	10	£321.60 Each
6810-7	Sta-Lok Rigging Insulator for 7 Strand Wire	10	£273.12 Each
6812	Sta-Lok Rigging Insulator for 1x19 Wire	12	£481.20 Each
6812-7	Sta-Lok Rigging Insulator for 7 Strand Wire	12	£408.78 Each

Sta-Lok Stud Terminal

In 316 stainless steel. Available in 1x19 or 7 strand wire.

Part No.	Description	Wire mm	A mm	B mm	Thread	Price
6203	Sta-Lok Stud for 1x19 Wire	3	61.6	51.6	M6	£32.58 Each
6203-7	Sta-Lok Stud for 7 Strand Wire	3	61.6	51.6	M6	£32.58 Each
6204	Sta-Lok Stud for 1x19 Wire	4	64.3	54	M8	£24.90 Each
6204-7	Sta-Lok Stud for 7 Strand Wire	4	64.3	54	M8	£57.60 Each
6204LH	Sta-Lok L/H Stud for 1x19 Wire	4	64.3	54	M8	£24.90 Each
6205	Sta-Lok Stud For 1X19 Wire	5	65.1	54	M8	£29.40 Each
6205-7	Sta-Lok Stud for 7 Strand Wire	5	65.1	54	M8	£35.28 Each
6206	Sta-Lok Stud for 1x19 Wire	5	77.8	66.7	M10	£29.40 Each
6206-7	Sta-Lok Stud for 7 Strand Wire	5	77.8	66.7	M10	£35.28 Each
6207	Sta-Lok Stud for 1x19 Wire	6	84.4	66.7	M10	£45.84 Each
6207-7	Sta-Lok Stud for 7 Strand Wire	6	84.4	66.7	M10	£45.84 Each
6208	Sta-Lok Stud for 1x19 Wire	6	92.5	82.6	M12	£45.84 Each
6208-7	Sta-Lok Stud for 7 Strand Wire	6	92.5	82.6	m12	£45.84 Each
6209	Sta-Lok Stud for 1x19 Wire	7	97.2	82.6	M12	£56.40 Each
6209-7	Sta-Lok Stud for 7 Strand Wire	7	97.2	82.6	M12	£56.40 Each
6210	Sta-Lok Stud for 1x19 Wire	8	98.4	82.6	M12	£66.42 Each
6210-7	Sta-Lok Stud for 7 Strand Wire	8	98.4	82.6	M12	£66.42 Each
6211	Sta-Lok Stud for 1x19 Wire	8	110.3	98.5	M16	£66.42 Each
6211-7	Sta-Lok Stud for 7 Strand Wire	8	110.3	98.5	M16	£66.42 Each
6212	Sta-Lok Stud for 1x19 Wire	10	111.1	98.5	M16	£94.92 Each
6212-7	Sta-Lok Stud for 7 Strand Wire	10	111.1	98.5	M16	£94.92 Each
6213	Sta-Lok Stud for 1x19 Wire	10	128.6	115.1	M20	£99.72 Each
6213-7	Sta-Lok Stud for 7 Strand Wire	10	128.6	115.1	M20	£99.72 Each
6214	Sta-Lok Stud for 1x19 Wire	12	138.9	115.1	M20	£233.04 Each
6214-7	Sta-Lok Stud for 7 Strand Wire	12	138.9	115.1	M20	£233.04 Each

Sta-Lok Stay Connector

In 316 stainless steel. Available in 1x19 or 7 strand wire.

Part No.	Description	Wire Dia mm	B mm	Body Dia mm	Price £
6404	Sta-Lok Stay Connector for 1x19 wire	4	11	12.7	£59.76 Each
6404-7	Sta-Lok Stay Connector for 7 Strand Wire	4	11	12.7	£52.08 Each
6405	Sta-Lok Stay Connector for 1x19 Wire	5	14	15.9	£69.18 Each
6405-7	Sta-Lok Stay Connector for 7 Strand Wire	5	14	15.9	£60.24 Each
6406	Sta-Lok Stay Connector for 1x19 Wire	6	16	19	£80.28 Each
6406-7	Sta-Lok Stay Connector for 7 Strand Wire	6	16	19	£70.44 Each
6407	Sta-Lok Stay Connector for 1x19 Wire	7	19	22.2	£90.66 Each
6407-7	Sta-Lok Stay Connector for 7 Strand Wire	7	19	22.2	£79.26 Each
6408	Sta-Lok Stay Connector for 1x19 Wire	8	19	25.4	£100.98 Each
6408-7	Sta-Lok Stay Connector for 7 Strand Wire	8	19	25.4	£88.20 Each
6410	Sta-Lok Stay Connector for 1x19 Wire	10	19	28.6	£141.60 Each
6410-7	Sta-Lok Stay Connector for 7 Strand Wire	10	19	28.6	£124.92 Each
6411	Sta-Lok Stay Connector for 1x19 Wire	11	25	34.9	£151.36 Each
6411-7	Sta-Lok Stay Connector for 7 Strand Wire	11	25	34.9	£151.36 Each
6412	Sta-Lok Stay Connector for 1x19 Wire	12	25	34.9	£244.20 Each
6412-7	Sta-Lok Stay Connector for 7 Strand Wire	12	25	34.9	£214.02 Each

1 x 19 Sta-Lok Wedge

In 316 stainless steel. For 1 x 19 wire.

Part No.	Product Description	Our Price
6733	Wedge For 1x19 Strand 3mm Wire	£3.66 Each
6734	Wedge For 1x19 Strand 4mm Wire	£5.22 Each
6735	Wedge For 1x19 Strand 5mm Wire	£5.40 Each
6736	Wedge For 1x19 Strand 6mm Wire	£6.24 Each
6737	Wedge For 1x19 Strand 7mm Wire	£7.26 Each
6738	Wedge For 1x19 Strand 8mm Wire	£9.24 Each
6740	Wedge For 1x19 Strand 10mm Wire	£12.78 Each
6742	Wedge For 1x19 Strand 12mm Wire	£17.28 Each
6744	Wedge For 1x19 Strand 14mm Wire	£30.12 Each
6746	Wedge For 1x19 Strand 16mm Wire	£35.04 Each
6749	Wedge For 1x19 Strand 19mm Wire	£110.58 Each
6752	Wedge For 1x19 Strand 22mm Wire	£119.88 Each
6755	Wedge For 1x19 Strand 25mm Wire	£124.92 Each

7 Strand Sta-Lok Wedge

In 316 stainless steel. For 7 strand wire.

Part No.	Product Description	Our Price
6703	Wedge for 7 Strand 3mm Wire	£5.52 Each
6704	Wedge for 7 Strand 4mm Wire	£6.48 Each
6705	Wedge for 7 Strand 5mm Wire	£7.38 Each
6706	Wedge For 7 Strand 6mm Wire	£7.80 Each
6707	Wedge For 7 Strand 7mm Wire	£8.40 Each
6708	Wedge For 7 Strand 8mm Wire	£10.62 Each
6710	Wedge For 7 Strand 10mm Wire	£14.64 Each
6712	Wedge For 7 Strand 12mm Wire	£30.12 Each

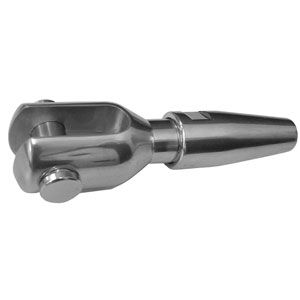

Hi-Mod Compression Fork

The latest development for self assembly fittings results in a termination at least as strong as the rated breaking load of the wire. The unqiue Aluminium Bronze crown rings locks the outer strands in position resulting in a perfect assembly every time. Made from 316 stainless steel. Can be removable and refitting without replacing parts or the need to cut the ends off the wire before refitting.

Please select 1 x 19, 7 strand or dyform wire.

Part No.	Description	Wire mm	Pin mm	F mm	C mm	T mm	L mm	Price £
7953	Hi-MOD Fork Terminal for 1x19 Wire	3	6	7	13	6.3	30	£30.42 Each
7953-7	Hi-MOD Fork Terminal for 7 Strand Wire	3	6	7	13	6.3	30	£30.42 Each
7954	Hi-MOD Fork Terminal for 1x19 Wire	4	8	9	16	8	40	£35.88 Each
7954-7	Hi-MOD Fork Terminal for 7 Strand Wire	4	8	9	16	8	40	£35.88 Each
7955	Hi-MOD Fork Terminal for 1x19 Wire	5	9.5	11	19	10	47	£43.68 Each
7955-7	Hi-MOD Fork Terminal for 7 Strand Wire	5	9.5	11	19	10	47	£43.68 Each
7956	Hi-MOD Fork Terminal for 1x19 Wire	6	11	12	22	11	50	£60.24 Each
7956-7	Hi-MOD Fork Terminal for 7 Strand Wire	6	11	12	22	11	50	£60.24 Each
7957	Hi-MOD Fork Terminal for 1x19 Wire	7	12.7	15	25	12.7	58	£66.48 Each
7957-7	Hi-MOD Fork Terminal for 7 Strand Wire	7	12.7	13	20	50	11	£66.48 Each
7958	Hi-MOD Fork Terminal for 1x19 Wire	8	14.3	16.5	28	14	70	£96.06 Each
7958-7	Hi-MOD Fork Terminal for 7 Strand Wire	8	14.3	16.5	28	14	70	£96.06 Each
7958DS	Hi-MOD Fork Terminal for 1x19 Wire	8	12.7	15	25	12.7	63	£86.22 Each
7958DS-7	Hi-MOD Fork Terminal for 7 Strand Wire	8	12.7	15	25	12.7	63	£86.22 Each
7958US	Hi-MOD Fork Terminal for 1x19 Wire	8	16	18	32	16	72	£103.80 Each
7958US-7	Hi-MOD Fork Terminal for 7 Strand Wire	8	16	18	32	16	72	£103.80 Each
7960	Hi-MOD Fork Terminal for 1x19 Wire	10	16	18	32	16	78	£124.68 Each
7960-7	Hi-MOD Fork Terminal for 7 Strand Wire	10	16	18	32	16	78	£124.68 Each
7962	Hi-MOD Fork Terminal for 1x19 Wire	12	19	23	38	19	93	£176.16 Each
7962-7	Hi-MOD Fork Terminal for 7 Strand Wire	12	19	23	38	19	93	£176.16 Each
7964	Hi-MOD Fork Terminal for 1x19 Wire	14	22.2	26	45	22.2	106	£327.12 Each
7964-7	Hi-MOD Fork Terminal for 7 Strand Wire	14	22.2	26	45	22.2	106	£327.12 Each
7966	Hi-MOD Fork Terminal for 1x19 Wire	16	25.4	30.5	50	25.4	126	£411.66 Each
7966-7	Hi-MOD Fork Terminal for 7 Strand Wire	16	25.4	30.5	50	25.4	126	£411.66 Each
7969	Hi-MOD Fork Terminal for 1x19 Wire	19	28.6	33	58	28.6	133	£761.64 Each
7969-7	Hi-MOD Fork Terminal for 7 Strand Wire	19	28.6	33	58	28.6	133	£761.64 Each
7972	Hi-MOD Fork Terminal for 1x19 Wire	22	32	39	64	32	146	£991.32 Each
7972-7	Hi-MOD Fork Terminal for 7 Strand Wire	22	32	39	64	32	146	£991.32 Each
7976	Hi-MOD Fork Terminal for 1x19 Wire	26	35	43.5	70	35	167	£1,225.62 Each
7976-7	Hi-MOD Fork Terminal for 7 Strand Wire	26	35	43.5	70	35	167	£1,225.62 Each

Hi-Mod Compression Eye

The latest development for self assembly fittings results in a termination at least as strong as the rated breaking load of the wire. The unqiue Aluminium Bronze crown rings locks the outer strands in position resulting in a perfect assembly every time. Made from 316 stainless steel. Can be removable and refitting without replacing parts or the need to cut the ends off the wire before refitting. Other eye sizes are available for wire sizes 6mm to 10mm to enable attachmentto a wider range of fittings.

Part No.	Description	Wire mm	Eye mm	F mm	C mm	L mm	T mm	Price £
7753	Hi-MOD Eye Terminal for 1x19 Wire	3	6.3	7	9	22	6	£36.00 Each
7753-7	Hi-MOD Eye Terminal for 7 Strand Wire	3	6.3	7	9	22	6	£36.00 Each
7754	Hi-MOD Eye Terminal for 1x19 Wire	4	8	9	12	28	7	£42.00 Each
7754-7	Hi-MOD Eye Terminal for 7 Strand Wire	4	8	9	12	28	7	£42.00 Each
7755	Hi-MOD Eye Terminal for 1x19 Wire	5	9.5	11	16	32	8	£48.00 Each
7755-7	Hi-MOD Eye Terminal for 7 Strand Wire	5	9.5	11	16	32	8	£48.00 Each
7756	Hi-MOD Eye Terminal for 1x19 Wire	6	11.1	13	19	38	9.5	£66.00 Each
7756-7	Hi-MOD Eye Terminal for 7 Strand Wire	6	11.1	13	19	38	9.5	£66.00 Each
7756A	Hi-MOD Eye Terminal for 1 x 19 Wire	6	12.7	13	20	43	11	£66.00 Each
7756A-7	Hi-MOD Eye Terminal for 7 Strand Wire	6	12.7	13	20	43	11	£66.00 Each
7757	Hi-MOD Eye Terminal for 1x19 Wire	7	12.7	13	20	50	11	£72.00 Each
7757-7	Hi-MOD Eye Terminal for 7 Strand Wire	7	12.7	13	20	50	11	£72.00 Each
7758	Hi-MOD Eye Terminal for 1x19 Wire	8	14.3	16	23	52	13	£96.00 Each
7758-7	Hi-MOD Eye Terminal for 7 Strand Wire	8	14.3	16	23	52	13	£96.00 Each
7758A	Hi-MOD Eye Terminal for 7x19 Wire	8	12.7	13	20	48	11	£90.00 Each
7758A-7	Hi-MOD Eye Terminal for 7 Strand Wire	8	12.7	13	20	48	11	£90.00 Each
7758B	Hi-MOD Eye Terminal for 1x19 Wire	8	16	19	28	56	15	£108.00 Each
7758B-7	Hi-MOD Eye Terminal for 7 Strand Wire	8	16	19	28	56	15	£108.00 Each
7760	Hi-MOD Eye Terminal for 1x19 Wire	10	16	19	28	59	15	£132.00 Each
7760-7	Hi-MOD Eye Terminal for 7 Strand Wire	10	16	19	28	59	15	£132.00 Each
7760A	Hi-MOD Eye Terminal for 1x19 Wire	10	19	22	34	65	18	£138.00 Each
7760A-7	Hi-MOD Eye Terminal for 7x19 Wire	10	19	22	34	65	18	£138.00 Each
7761	Hi-MOD Eye Terminal for 1x19 Wire	11	10	22	34	65	18	£105.06 Each
7761-7	Hi-MOD Eye Terminal for 7x19 Wire	11	19	22	34	65	18	£105.06 Each
7762	Hi-MOD Eye Terminal for 1x19 Wire	12	19	22	34	79	18	£192.00 Each
7762-7	Hi-MOD Eye Terminal for 7 Strand Wire	12	19	22	34	79	18	£192.00 Each
7764	Hi-MOD Eye Terminal for 1x19 Wire	14	22.2	26	36	86	22	£348.00 Each
7764-7	Hi-MOD Eye Terminal for 7 Strand Wire	14	22.2	26	36	86	22	£348.00 Each
7766	Hi-MOD Eye Terminal for 1x19 Wire	16	25.4	29	41	94	24	£456.00 Each
7766-7	Hi-MOD Eye Terminal for 7 Strand Wire	16	25.4	29	41	94	24	£456.00 Each
7769	Hi-MOD Eye Terminal for 1x19 Wire	19	28.6	32	44	98	28	£936.00 Each
7769-7	Hi-MOD Eye Terminal for 7x19 Wire	19	28.6	32	44	98	28	£936.00 Each
7772	Hi-MOD Eye Terminal for 1x19 Wire	22	32	36	50	108	32	£1,080.00 Each
7772-7	Hi-MOD Eye Terminal for 7x19 Wire	22	32	36	50	108	32	£1,080.00 Each
7776	Hi-MOD Eye Terminal for 1x19 Wire	26	35	42	55	144	34	£1,440.00 Each
7776-7	Hi-MOD Eye Terminal for 7x19 Wire	26	35	42	55	144	34	£1,440.00 Each

Hi-Mod Compression Stud Metric

The latest development for self assembly fittings results in a termination at least as strong as the rated breaking load of the wire. The unqiue Aluminium Bronze crown rings locks the outer strands in position resulting in a perfect assembly every time. Made from 316 stainless steel. Can be removable and refitting without replacing parts or the need to cut the ends off the wire before refitting. Other thread sizes are available for wire sizes 4mm to 10mm to allow either a smaller wire to thread or a smaller thread to wire for use with guard rails, etc.

Please select 1 x 19, 7 strand or dyform wire.

Part No.	Descriptiom	Wire mm	Thread mm	T mm	L mm	Price £
7853M	Hi-MOD Stud For 1x19 Wire	3	M6	47	63	£24.00 Each
7853M-7	Hi-MOD Stud For 7 Strand Wire	3	M6	47	63	£24.00 Each
7854AM	Hi-MOD Stud For 1x19 Wire	4	M6	47	68	£27.60 Each
7854AM-7	HI-MOD Stud For 7 Strand Wire	4	M6	47	68	£27.60 Each
7854M	Hi-MOD Stud For 1x19 Wire	4	M8	54	74	£27.60 Each
7854M	Hi-MOD Stud For 1x19 Wire	4	M8	54	74	£27.60 Each
7854M-7	Hi-MOD Stud For 7 Strand Wire	4	M8	54	74	£27.60 Each
7854M-7	Hi-MOD Stud For 7 Strand Wire	4	M8	54	74	£27.60 Each
7855AM	Hi-MOD Stud For 1x19 Wire	5	M8	54	80	£32.40 Each
7855AM-7	Hi-MOD Stud For 7 Strand Wire	5	M8	54	80	£32.40 Each
7855M	Hi-MOD Stud For 1x19 Wire	5	M10	68	90	£32.40 Each
7855M-7	Hi-MOD Stud For 7 Strand Wire	5	M10	68	90	£32.40 Each
7856AM	Hi-MOD Stud For 1x19 Wire	6	M10	68	95	£40.80 Each
7856AM-7	Hi-MOD Stud For 7 Strand Wire	6	M10	68	95	£40.80 Each
7856M	Hi-MOD Stud For 1x19 Wire	6	M12	90	117	£42.00 Each
7856M-7	Hi-MOD Stud For 7 Strand Wire	6	M12	90	117	£42.00 Each
7857M	Hi-MOD Stud For 1x19 Wire	7	M12	90	123	£69.60 Each
7857M-7	Hi-MOD Stud For 7 Strand Wire	7	M12	90	123	£49.20 Each
7858AM-7	Hi-MOD Stud For 7 Strand Wire	8	M12	90	129	£58.80 Each
7858M	Hi-MOD Stud For 1x19 Wire	8	M16	100	134	£62.40 Each
7858M-7	Hi-MOD Stud For 7 Strand Wire	8	M16	100	134	£62.40 Each
7859M	Hi-MOD Stud For 1x19 Wire	10	M16	-	-	£80.40 Each
7859M-7	Hi-MOD Stud For 7 Strand Wire	10	M16	-	-	£80.40 Each
7860M	Hi-MOD Stud For 1x19 Wire	10	M20	120	158	£81.60 Each
7860M-7	Hi-MOD Stud For 7 Strand Wire	10	M20	120	158	£81.60 Each
7861M	Hi-MOD Stud For 1x19 Wire	12	M20	.	.	£121.20 Each
7861M-7	Hi-MOD Stud For 7 Strand Wire	12	M20	-	-	£121.20 Each

Hi-Mod Compression Stud UNF for 1x19 Wire

The latest development for self assembly fittings results in a termination at least as strong as the rated breaking load of the wire. The unqiue Aluminium Bronze crown rings locks the outer strands in position resulting in a perfect assembly every time. Made from 316 stainless steel. Can be removable and refitting without replacing parts or the need to cut the ends off the wire before refitting. Other thread sizes are available for wire sizes 4mm to 10mm to allow either a smaller wire to thread or a smaller thread to wire for use with guard rails, etc.

Available in 1 x 19, 7 strand or dyform wire.

Part No.	Description	Wire mm	Thread	T mm	L mm	Price £
7853U	UNF Hi-MOD Stud For 1x19 Wire	3	1/4"	47	68	£34.80 Each
7854DS	UNF Hi-MOD Stud For 1x19 Wire	4	1/4"	47	68	£40.80 Each
7854U	UNF Hi-MOD Stud For 1x19 Wire	4	5/16"	54	77	£40.80 Each
7855DS	UNF Hi-MOD Stud For 1x19 Wire	5	5/16"	54	82	£48.00 Each
7855U	UNF Hi-MOD Stud For 1x19 Wire	5	3/8"	68	91	£48.00 Each
7855US	UNF Hi-MOD Stud For 1x19 Wire	5	7/16"	75	97	£51.60 Each
7856DS	UNF Hi-MOD Stud For 1x19 Wire	6	3/8"	68	97	£61.20 Each
7856U	UNF Hi-MOD Stud For 1x19 Wire	6	7/16"	75	101	£61.20 Each
7856US	UNF Hi-MOD Stud For 1x19 Wire	6	1/2"	68	97	£63.60 Each
7857U	UNF Hi-MOD Stud For 1x19 Wire	7	1/2"	90	123	£74.40 Each
7858U	UNF Hi-MOD Stud For 1x19 Wire	8	5/8"	100	137	£94.80 Each
7858UDS	UNF Hi-MOD Stud For 1x19 Wire	8	1/2"	90	129	£88.80 Each
7860U	UNF Hi-MOD Stud For 1x19 Wire	10	5/8"	100	143	£121.20 Each
7860US	UNF Hi-MOD Stud For 1x19 Wire	10	3/4"	120	163	£122.40 Each
7862U	UNF Hi-MOD Stud For 1x19 Wire	12	3/4"	120	173	£183.60 Each
7864U	UNF Hi-MOD Stud For 1x19 Wire	14	7/8"	140	201	£345.60 Each
7866U	UNF Hi-MOD Stud For 1x19 Wire	16	1"	160	232	£430.80 Each
7869U	UNF Hi-MOD Stud For 1x19 Wire	19	1 1/8"	180	250	£1,004.40 Each
7872U	UNF Hi-MOD Stud For 1x19 Wire	22	1 1/4"	200	277	£1,394.40 Each
7876U	UNF Hi-MOD Stud For 1x19 Wire	26	1 3/8"	220	320	£1,722.00 Each

7 Strand Hi-Mod Wedge and Crown Rings

Replacement wedges and crown rings for the Hi-Mod range of compression fittings. Suitable for 7 strand wire.

Part No.	Product Description	Wire Size/mm	Type	Our Price
6703CR	3mm Crown Ring For 7 Strand Hi-Mod	3	crown ring	£4.92 Each
6703W	Cone For 3mm 7 Strand Hi-Mod	3	cone	£3.36 Each
6704CR	4mm Crown Ring For 7 Strand Hi-Mod	4	crown ring	£5.76 Each
6704W	Cone For 4mm 7 Strand Hi-Mod	4	cone	£3.84 Each
6705CR	5mm Crown Ring For 7 Strand Hi-Mod	5	crown ring	£6.72 Each
6705W	Cone For 5mm 7 Strand Hi-Mod	5	cone	£4.56 Each
6706CR	6mm Crown Ring For 7 Strand Hi-Mod	6	crown ring	£8.46 Each
6706W	Cone For 6mm 7 Strand Hi-Mod	6	cone	£5.76 Each
6707CR	7mm Crown Ring For 7 Strand Hi-Mod	7	crown ring	£10.44 Each
6707W	Cone For 7mm 7 Strand Hi-Mod	7	cone	£7.08 Each
6708CR	8mm Crown Ring For 7 Strand Hi-Mod	8	crown ring	£13.26 Each
6708W	Cone For 8mm 7 Strand Hi-Mod	8	cone	£9.00 Each
6710CR	10mm Crown Ring For 7 Strand Hi-Mod	10	crown ring	£16.98 Each
6710W	Cone For 10mm 7 Strand Hi-Mod	10	cone	£11.58 Each
6712CR	12mm Crown Ring For 7 Strand Hi-Mod	12	crown ring	£25.86 Each
6712W	Cone For 12mm 7 Strand Hi-Mod	12	cone	£17.64 Each
6714W	Cone For 14mm 7 Strand Hi-Mod	14	cone	£33.18 Each
6716W	Cone For 16mm 7 Strand Hi-Mod	16	cone	£41.34 Each
6719W	Cone For 19mm 7 Strand Hi-Mod	19	cone	£57.60 Each
6722W	Cone For 22mm 7 Strand Hi-Mod	22	cone	£71.58 Each
6726W	Cone For 26mm 7 Strand Hi-Mod	26	cone	£95.82 Each

1 x 19 Hi-Mod Wedge and Crown Rings

Replacement wedges and crown rings for the Hi-Mod range of compression fittings. Suitable for 1 x 19 wire.

Part No.	Product Description	Wire Size/mm	Type	Our Price
6733CR	Crown Ring For Hi-Mod 1x19 Strand 3mm	3	Crown	£5.64 Each
6733W	Cone For 3mm 1x19 Hi-Mod	3	Cone	£3.84 Each
6734CR	Crown Ring For Hi-Mod 1x19 Strand 4mm	4	crown ring	£5.64 Each
6734W	Cone For 4mm 1x19 Hi-Mod	4	cone	£3.84 Each
6735CR	Crown Ring For Hi-Mod 1x19 Strand 5mm	5	crown ring	£6.72 Each
6735W	Cone For 5mm 1x19 Hi-Mod	5	cone	£5.10 Each
6736CR	Crown Ring For Hi-Mod 1x19 Strand 6mm	6	crown ring	£10.32 Each
6736W	Cone For 6mm 1x19 Hi-Mod	6	cone	£7.08 Each
6737CR	Crown Ring For Hi-Mod 1x19 Strand 7mm	7	crown ring	£10.44 Each
6737W	Cone For 7mm 1x19 Hi-Mod	7	cone	£7.08 Each
6738CR	Crown Ring For Hi-Mod 1x19 Strand 8mm	8	crown ring	£13.26 Each
6738W	Cone For 8mm 1x19 Hi-Mod	8	cone	£9.00 Each
6740CR	Crown Ring For Hi-Mod 1x19 Strand 10mm	10	crown ring	£18.90 Each
6740W	Cone For 10mm 1x19 Hi-Mod	10	cone	£14.10 Each
6742CR	Crown Ring For Hi-Mod 1x19 Strand 12mm	12	crown ring	£25.86 Each
6742W	Cone For 12mm 1x19 Hi-Mod	12	crown ring	£17.64 Each
6744W	Cone For 14mm 1x19 Hi-Mod	14	cone	£33.18 Each
6746W	Cone For 16mm 1x19 Hi-Mod	16	cone	£41.34 Each
6749W	Cone For 19mm 1x19 Hi-Mod	19	cone	£57.60 Each

Sta-Lok Universal Former

In 316 stainless steel. Formers are supplied in packs of 5 up to 6mm, sizes 8-10mm are supplied in packs of 2, and larger sizes sold individually.

Part No.	Product Description	Our Price
6733F	Former 3mm Wire (Pack of 5)	£12.18 Per 5
6734F	Former 4mm Wire (Pack of 5)	£12.30 Per 5
6735F	Former 5mm Wire (Pack of 5)	£14.46 Per 5
6736F	Former 6mm Wire (Pack of 5)	£15.42 Per 5
6737F	Former 7mm Wire (Pack of 5)	£18.36 Per 5
6738F	Former 8mm Wire (Pack of 2)	£8.76 Per 2
6740F	Former 10mm Wire (Pack of 2)	£11.22 Per 2
6742F	Former 12mm Wire (Pack of 2)	£12.96 Each

Hi-Mod Compression Toggle

Other thread sizes are available for wire sizes 4mm to 10mm to allow wither a smaller wire to thread or a smaller thread for the wire for use with guard rails etc.

Available for 1x19, 7 Strand or Dyform Wire.

Part No.	Description	Wire mm	Pin mm	T mm	L mm	Price £
7783	Hi-Mod Compression Toggle 1x19 Wire	3	6	8	45	£45.60 Each
7783-7	Hi-Mod Compression Toggle 7 Strand Wire	3	6	8	45	£45.60 Each
7784	Hi-Mod Compression Toggle 1x19 Wire	4	8	10	57	£56.40 Each
7784-7	Hi-Mod Compression Toggle 7 Strand Wire	4	8	10	57	£56.40 Each
7785	Hi-Mod Compression Toggle 1x19 Wire	5	9.5	11	71	£68.40 Each
7785-7	Hi-Mod Compression Toggle 7 Strand Wire	5	9.5	11	71	£68.40 Each
7786	Hi-Mod Compression Toggle 1x19 Wire	6	11	14	80	£84.00 Each
7786-7	Hi-Mod Compression Toggle 7 Strand Wire	6	11	14	80	£84.00 Each
7787	Hi-Mod Compression Toggle 1x19 Strand Wire	7	12.7	14.2	92	£96.00 Each
7787-7	Hi-Mod Compression Toggle 7 Strand Wire	7	12.7	14.2	92	£96.00 Each
7788	Hi-Mod Compression Toggle 1x19 Wire	8	12.7	14.2	92	£114.00 Each
7788-7	Hi-Mod Compression Toggle 7 Strand Wire	8	12.7	14.2	92	£114.00 Each
7789	Hi-Mod Compression Toggle 1x19 Wire	8	16	19	116	£150.00 Each
7789-7	Hi-Mod Compression Toggle 7 Strand Wire	8	16	19	116	£150.00 Each
7790	Hi-Mod Compression Toggle 1x19 Wire	10	16	17.5	116	£180.00 Each
7790-7	Hi-Mod Compression Toggle 7 Strand Wire	10	16	17.5	116	£180.00 Each
7792	Hi-Mod Compression Toggle 1x19 Wire	12	19	22	157	£240.00 Each
7792-7	Hi-Mod Compression Toggle 7 Strand Wire	12	19	22	157	£240.00 Each
7794	Hi-Mod Compression Toggle 1x19 Wire	14	22.2	24	174	£420.00 Each
7794-7	Hi-Mod Compression Toggle 7 Strand Wire	14	22.2	24	174	£420.00 Each
7796	Hi-Mod Compression Toggle 1x19 Wire	16	25.4	28	194	£600.00 Each
7796-7	Hi-Mod Compression Toggle 7 Strand Wire	16	25.4	28	194	£600.00 Each
7799	Hi-Mod Compression Toggle 1x19 Wire	19	28.6	30	215	£1,140.00 Each
7799-7	Hi-Mod Compression Toggle 7 Strand Wire	19	28.6	30	215	£1,140.00 Each
7800	Hi-Mod Compression Toggle 1x19 Wire	22	32	34	235	£1,440.00 Each
7800-7	Hi-Mod Compression Toggle 7 Strand Wire	22	32	34	235	£1,440.00 Each
7801	Hi-Mod Compression Toggle 1x19 Wire	26	35	38	296	£1,800.00 Each
7801-7	Hi-Mod Compression Toggle 7 Strand Wire	26	35	38	296	£1,800.00 Each

Hi-Mod Compression In Line Link

Can be used in an emergency to repair broken rigging or as a permanent join in two pieces of wire.

Available for 1x19, 7 Strand or Dyform Wire on request.

Part No.	Description	Wire mm	Thread L mm	Price £
7653	Hi-Mod Compression In Line Link	3	26	£66.00 Each
7653-7	Hi-Mod Compression In Line Link	3	26	£66.00 Each
7654	Hi-Mod Compression In Line Link	4	27	£76.80 Each
7654-7	Hi-Mod Compression In Line Link	4	27	£76.80 Each
7655	Hi-Mod Compression In Line Link	5	33	£90.00 Each
7655-7	Hi-Mod Compression In Line Link	5	33	£90.00 Each
7656	Hi-Mod Compression In Line Link	6	35	£111.60 Each
7656-7	Hi-Mod Compression In Line Link	6	35	£111.60 Each
7657	Hi-Mod Compression In Line Link	7	43	£129.60 Each
7657-7	Hi-Mod Compression In Line Link	7	43
7658	Hi-Mod Compression In Line Link	8	55	£164.40 Each
7658-7	Hi-Mod Compression In Line Link	8	55	£164.40 Each
7660	Hi-Mod Compression In Line Link	10	62	£218.40 Each
7660-7	Hi-Mod Compression In Line Link	10	62	£218.40 Each
7662	Hi-Mod Compression In Line Link	12	72	£332.40 Each
7662-7	Hi-Mod Compression In Line Link	12	72	£332.40 Each
7664	Hi-Mod Compression In Line Link	14	85	£591.60 Each
7664-7	Hi-Mod Compression In Line Link	14	85	£591.60 Each
7666	Hi-Mod Compression In Line Link	16	97	£730.80 Each
7666-7	Hi-Mod Compression In Line Link	16	97	£730.80 Each
7669	Hi-Mod Compression In Line Link	19	97	£1,497.60 Each
7669-7	Hi-Mod Compression In Line Link	19	97	£1,497.60 Each
7672	Hi-Mod Compression In Line Link	22	111	£1,731.60 Each
7672-7	Hi-Mod Compression In Line Link	22	111	£1,731.60 Each
7676	Hi-Mod Compression In Line Link	26	131	£2,316.00 Each
7676-7	Hi-Mod Compression In Line Link	26	131	£2,316.00 Each

Hi-Mod Rigging Insulator

HI-MOD Fail safe Insulators utilise the same features that have made the Hi-Mod compression fittings so popular, this insulator has an internal ball-socket in the main body that threads onto the connecting stud.

The Nut is insulated from the stainless steel body by a Tufnol socket, preventing electrical transference to the insulator body or opposite terminal.

Should for an reason the Tufnol be compromised, the nut will bottom out against the stainless steel housing, while the back stay will loosen, the insulator will remain attached allowing the rig to be re-tensioned until a repair can be made.

Part No.	Description	Wire mm	L mm	Price £
RICC06	Hi-Mod Rigging Insulator 1x19 Wire	6	110	£294.00 Each
RICC06-7	Hi-Mod Rigging Insulator 7 Strand Wire	6	110	£294.00 Each
RICC07	Hi-Mod Rigging Insulator 1x19 Wire	7	131	£336.00 Each
RICC07-7	Hi-Mod Rigging Insulator 7 Strand Wire	7	131	£336.00 Each
RICC08	Hi-Mod Rigging Insulator 1x19 Wire	8	153	£379.20 Each
RICC08-7	Hi-Mod Rigging Insulator 7 Strand Wire	8	153	£379.20 Each
RICC10	Hi-Mod Rigging Insulator 1x19 Wire	10	159	£458.40 Each
RICC10-7	Hi-Mod Rigging Insulator 7 Strand Wire	10	159	£458.40 Each
RICC12	Hi-Mod Rigging Insulator 1x19 Wire	12	192	£578.40 Each
RICC12-7	Hi-Mod Rigging Insulator 7 Strand Wire	12	192	£578.40 Each
RICC14	Hi-Mod Rigging Insulator 1x19 Wire	14	222	£1,557.60 Each
RICC14-7	Hi-Mod Rigging Insulator 7 Strand Wire	14	222	£1,557.60 Each
RICC16	Hi-Mod Rigging Insulator 1x19 Wire	16	258	£1,940.40 Each
RICC16-7	Hi-Mod Rigging Insulator 7 Strand Wire	16	258	£1,940.40 Each

Hi-Mod Compression Extenders

Can be used in an emergency to repair broken rigging, simply place between and of the compression fitting bodies and nuts to extend the length or for extra length fix 2 together. idealin emergency situationsif the rigging fails and you need to cut the broken section out.

Available in 1x19 and 7 Strand Wire.

Part No.	Description	Wire mm	L mm	Price £
CTX03	Hi-Mod Compression Extenders 1x19 Wire	3	45	£19.20 Each
CTX04	Hi-Mod Compression Extenders 1x19 Wire	4	60	£20.40 Each
CTX05	Hi-Mod Compression Extenders 1X19 Wire	5	75	£24.00 Each
CTX06	Hi-Mod Compression Extenders 1x19 Wire	6	90	£27.60 Each
CTX07	Hi-Mod Compression Extenders 1x19 Wire	7	105	£33.60 Each
CTX08	Hi-Mod Compression Extenders 1X19 Wire	8	120	£40.80 Each
CTX10	Hi-Mod Compression Extenders 1x19 Wire	10	150	£56.40 Each
CTX12	Hi-Mod Compression Extenders 1x19 Wire	12	180	£102.00 Each
CTX14	Hi-Mod Compression Extenders 1x19 Wire	14	210	£136.80 Each
CTX16	Hi-Mod Compression Extenders 1x19 Wire	16	240	£194.40 Each
CTX19	Hi-Mod Compression Extenders 1x19 Wire	19	285	£238.80 Each
CTX22	Hi-Mod Compression Extenders 1x19 Wire	22	330	£394.80 Each
CTX26	Hi-Mod Compression Extenders 1x19 Wire	26	390	£637.20 Each

Hi-Mod Compression Stud UNF for 7 Strand Wire

The latest development for self assembly fittings results in a termination at least as strong as the rated breaking load of the wire. The unqiue Aluminium Bronze crown rings locks the outer strands in position resulting in a perfect assembly every time. Made from 316 stainless steel. Can be removable and refitting without replacing parts or the need to cut the ends off the wire before refitting. Other thread sizes are available for wire sizes 4mm to 10mm to allow either a smaller wire to thread or a smaller thread to wire for use with guard rails, etc.

Part No.	Description	Wire mm	Thread	T mm	L mm	Price £
7853U-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	3	1/4"	47	68	£34.80 Each
7854DS-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	4	1/4"	47	68	£40.80 Each
7854U-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	4	5/16"	54	77	£40.80 Each
7855DS-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	5	5/16"	54	82	£48.00 Each
7855U-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	5	3/8"	68	91	£48.00 Each
7855US-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	5	7/16"	75	97	£51.60 Each
7856DS-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	6	3/8"	68	91	£61.20 Each
7856U-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	6	7/16"	75	101	£61.20 Each
7856US-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	6	1/2"	90	119	£63.60 Each
7857U-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	7	1/2"	90	123	£74.40 Each
7858U-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	8	5/8"	100	137	£94.80 Each
7858UDS-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	8	1/2"	90	129	£88.80 Each
7860U-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	10	5/8"	100	143	£121.20 Each
7860US-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	10	3/4"	120	163	£122.40 Each
7862U-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	12	3/4"	120	173	£183.60 Each
7864U-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	14	7/8"	140	201	£345.60 Each
7866U-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	16	1"	160	232	£430.80 Each
7869U-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	19	1 1/8"	180	250	£1,004.40 Each
7872U-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	22	1 1/4"	200	277	£1,394.40 Each
7876U-7	Hi-Mod Compression Stud UNF for 7 Strand Wire	26	1 3/8"	220	320	£1,722.00 Each

Hi-Mod Rigging Insulator Stud-Fork 1 x 19

HI-MOD Fail safe Insulators utilise the same features that have made the Hi-Mod compression fittings so popular, this insulator has an internal ball-socket in the main body that threads onto the connecting stud.

The Nut is insulated from the stainless steel body by a Tufnol socket, preventing electrical transference to the insulator body or opposite terminal.

Should for an reason the Tufnol be compromised, the nut will bottom out against the stainless steel housing, while the back stay will loosen, the insulator will remain attached allowing the rig to be re-tensioned until a repair can be made.

Part No.	Description	Wire mm	Fork Length mm	Price £
RICF05	Hi-Mod Rigging Insulator Stud-Fork 1 x 19	5	121	£262.20 Each
RICF06	Hi-Mod Rigging Insulator Stud-Fork 1 x 19	6	121	£308.40 Each
RICF07	Hi-Mod Rigging Insulator Stud-Fork 1 x 19	7	142	£361.20 Each
RICF08	Hi-Mod Rigging Insulator Stud-Fork 1 x 19	8	164	£405.60 Each
RICF10	Hi-Mod Rigging Insulator Stud-Fork 1 x 19	10	176	£506.40 Each
RICF12	Hi-Mod Rigging Insulator Stud-Fork 1 x 19	12	207	£762.00 Each
RICF14	Hi-Mod Rigging Insulator Stud-Fork 1 x 19	14	238	£1,682.40 Each
RICF16	Hi-Mod Rigging Insulator Stud-Fork 1 x 19	16	271	£2,209.20 Each
