Guard Rail Fittings

Page 1 of 1   [1]

Stainless Steel Plastic Coated Wire Rope

Stainless Steel Plastic Coated Wire Rope

White PVC Coated wire ideal for guard rails. Made from 316 Stainless Steel Wire, then coated with white PVC, diameters 3mm(4mm with coating) and 4mm (6mm with coating).

Available in either 1x19 Wire (strong but not very flexible) or 7x7 wire (more flexible but not as strong as 1x19).

Choose from either 100metre reels(C), 20m lengths(B), or cut by the metre(P).

Part No. Product Description Wire Type Wire Size/mm Coated To/mm Length/mtrs Breaking Load Kg Our Price More Details
5404B 4mm 1x19 White PVC Coated Stainless Steel Wire - 20m Coil 1x19 4 6 20 1280 £67.00 Per 20m View more details
5404C 4mm 1x19 White PVC Coated Stainless Steel Wire - 100m Coil 1x19 4 6 100 1280 £247.20 100m View more details
5404P 4mm 1x19 White PVC Coated Stainless Steel Wire - Per Metre 1x19 4 6 1 1280 £2.80 Per Metre View more details
5434B 4mm 7x7 White PVC Coated Stainless Steel Wire - 20m Coil 7x7 4 6 20 968 £37.80 Per 20m View more details
5434C 4mm 7x7 White PVC Coated Stainless Steel Wire - 100m Coil 7x7 4 6 100 968 £166.50 100m View more details
5434P 4mm 7x7 White PVC Coated Stainless Steel Wire - Per Metre 7x7 4 6 1 968 £2.10 Per Metre View more details
5603B 3mm 7x7 White PVC Coated Stainless Steel Wire - 20m Coil 7x7 3 4 20 545 £33.55 Per 20m View more details
5603C 3mm 7x7 White PVC Coated Stainless Steel Wire - 100m Coil 7x7 3 4 100 545 £114.85 100m View more details
5603P 3mm 7x7 White PVC Coated Stainless Steel Wire - Per Metre 7x7 3 4 1 545 £1.90 Per Metre View more details

Sta-Lok Guard Rail Adjusters

Sta-Lok Guard Rail Adjusters

Fork and Sta-Lok terminal in 316 stainless steel.  Availabe in ether 1x19 or 7 strand wire types.

Part No. Description Wire mm Max L mm Min L mm B mm D mm Pin mm Price More Details
6764 Guard Rail Terminal Fitting for 1x19 Wire 4 144 117 14.7 11.1 8 £43.92 Each View more details
6764-7 Guard Rail Terminal Fitting for 7 Strand Wire 4 144 117 14.7 11.1 8 £43.92 Each View more details
6765 Guard Rail Terminal Fitting for 1x19 5 144 117 14.7 11.1 8 £48.48 Each View more details
6765-7 Guard Rail Terminal Fitting for & Strand Wire 5 144 117 14.7 11.1 8 £48.48 Each View more details

Sta-Lok Guard Rail Adjusters

Sta-Lok Guard Rail Adjusters

Fork and fork in 316 stainless steel.

Part No. Description Wire mm Max L mm Min L mm B mm D mm Pin mm Price £ More Details
6784 Guard Rail Fitting Fork & Fork 4-5 160 125 14.7 11.1 8 £28.44 Each View more details

Guard Rail Fittings

Guard Rail Fittings

Made from 316 stainless steel, suitable for 4mm wire.
Supplied with Hex keys, 20mm adjustment.
Use with the pelican hook, (Part No. 1081), for quick release gate.
Breaking load 750Kgs.
Guard rail kits Consist of 1 x Right hand adjuster, 1 x Left hand adjuster and 4mm stainless steel wire white plastic coated to 6mm.

Part No. Product Description Our Price More Details
8474 7 Metre Guard Rail Set £40.10 Each View more details
8475 10 Metre Guard Rail Set £55.50 Each View more details
8475L 4mm Left Hand Adjuster £13.62 Each View more details
8475R 4mm Right Hand Adjuster (M6 thread) £13.62 Each View more details

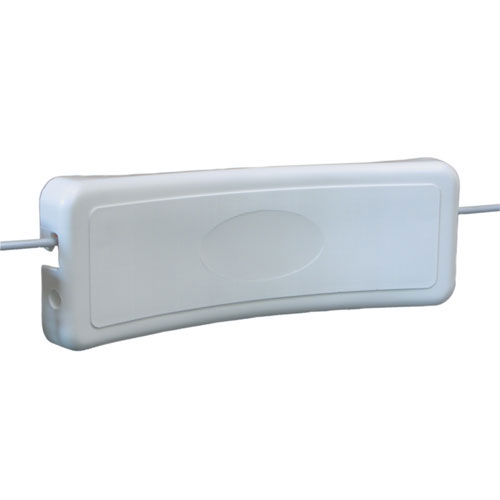

Guardrail Back Supporter

Guardrail Back Supporter

Most of us have spent hours leaning against a guard-rail whilst on watch! Uncomfortable after a whle isn't it? Well, this guardrail backrest is shaped to fit the contours of your back and relieve the discomfort. Made in UV stabilized white plastic, it is simply clip-on and off and is suitable for up to 6mm guardrail wire.

Part No. Product Description Our Price More Details
8963 Back-Supporter £8.15 Each View more details

Assorted Guard Rail Fittings

Assorted Guard Rail Fittings

Stainless steel eyes, swage studs and oval nuts to help create the perfect guard-rail set up.

Part No. Product Description Our Price More Details
6761 Guardrail Removable Eye Terminal 3mm £30.72 Each View more details
6762 Guardrail Removable Eye Terminal 4mm £30.72 Each View more details
6763 Guardrail Removable Eye Terminal 5mm £32.64 Each View more details
6766 M8 Short Swage Stud for 4mm Guard Rails £6.66 Each View more details
6767 M8 Eye-Nut (Oval Eye) for Guard rails £2.16 Each View more details
6769 M8 Swage Short Stud for 5mm Guard Rail £8.76 Each View more details
6774 M8 Oval Eye Nut £9.36 Each View more details
6775 M8 Interlinked Guard Rail Eye £5.28 Each View more details

Sta-Lok Guard Rail Adjuster Fork & Blank M8

Sta-Lok Guard Rail Adjuster Fork & Blank M8

Swivel Fork and Blank in 316 Stainless Steel

Part No. Description Chain Size mm Inside Length(Fork) mm Jaw Width(Fork) mm Pin mm Price £ More Details
6768 Sta-Lok Guard Rail Adjuster Fork & Blank M8 4-5 14.7 11.1 8 £19.08 Each View more details
