MastWalker folding mast rung specification

Specifications
Rung Size:	15 x 3.5 cm
Bracket:	11 x 7 x 2.4 cm
Weight:	250g
Material:	Almag 35 aluminium alloy
Fastenings:	3 off 6 mm csk SS machine screws

MastWalker is supplied as different type numbers with different curvatures to fit masts of various section profiles. Please see our Mast Profile Template PDF to determine the correct MastWalker Type Number for your mast.

The diagram below is not to scale but just for illustrative purposes.
Click here for full size PDF template. Please ensure you print it at 100% size.

MastWalker, folding mast step, folding mast rung

Type D fits many standard mast sections

Part Numbers
Code	Description
MW508-192	Type A
MW508-183	Type B
MW508-184	Type C
MW508-185	Type D
MW508-186	Type E
MW508-187	Type F

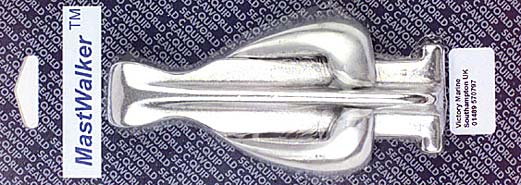

MW508-185-02	Type D Retail Pack (Pictured Below)

MastWalker, folding mast step, folding mast rung
